Description

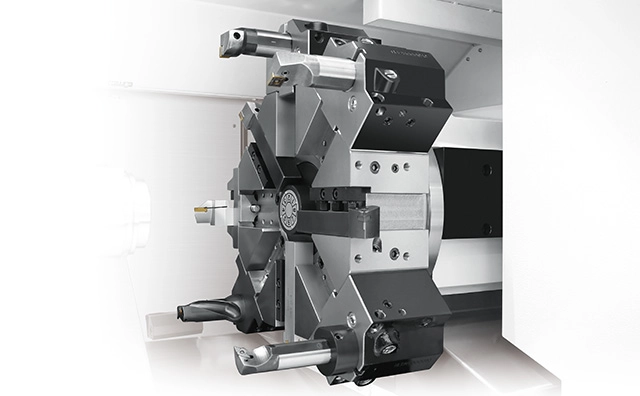

O.D. turning face tool: 20 mm × 20 mm
Boring bar: Φ20 mm / Φ25 mm (selectable)
Indexing time: 0.2 sec

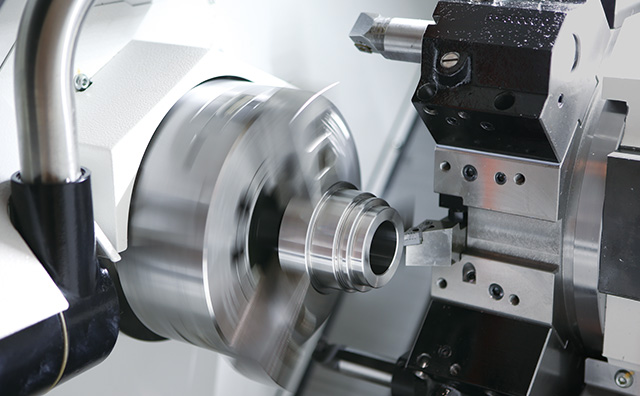

The built-in motor spindle uses no gears or belts which can cause vibration during machining, which significantly improves roundness and surface roughness. This also eliminates the need to adjust belt tension and replace belts due to wear.

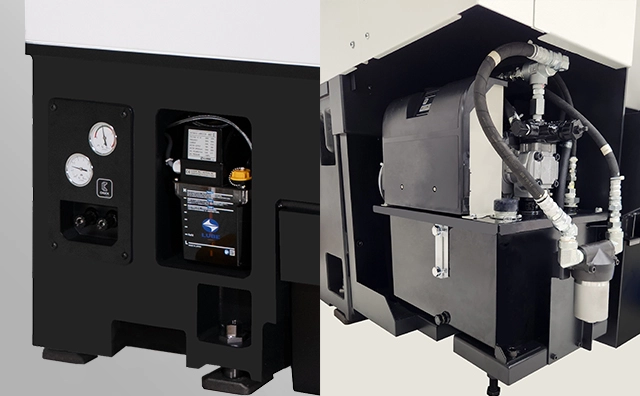

Areas for daily maintenance are designed to be accessible from the front and rear side. It is also useful for installing machines side by side. The lubrication oil tank is located in front of the machine. The other items requiring daily checking are also located in front and back of the machine for easy maintenance when the machines are located in a production line.
A single second makes a difference in manufacturing.
The automation system of QT-PRIMOS reduces cycle time through rapid axis travel and acceleration/deceleration.
Accurate and precise positioning ensures reliable workpiece attachment and removal.
This automated system is ideal for mass production of a small variety of products. Automation is possible in the same floor space as standard machines. Continuous machining is possible due to automatic loading/unloading. The work output conveyor and work input chute are on the left side of the machine for continuous operation.
