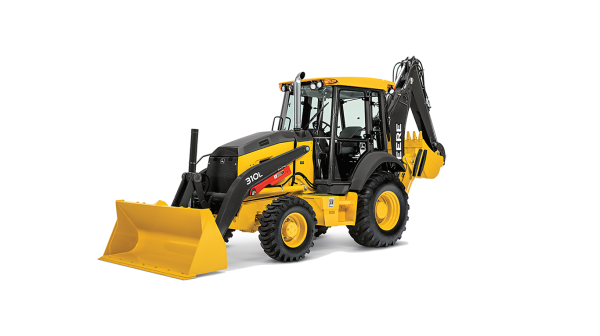

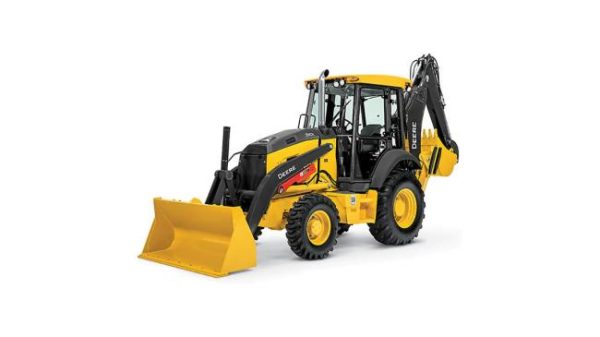

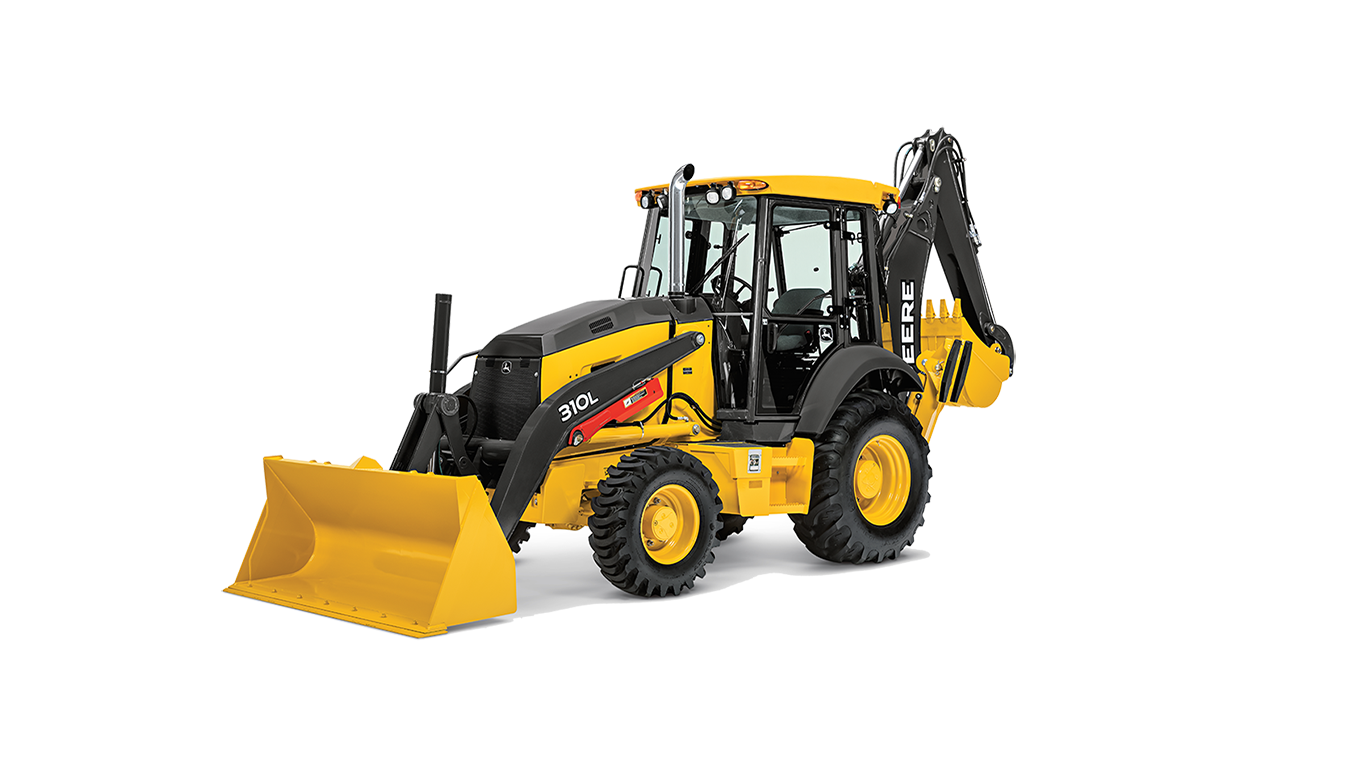

John Deere 310L Backhoe Loader

Description

4WD Front Axle, ltr (gallons (US)): 6.5 (1.725)
Battery Voltage, V: 12
Boom Lift – Maximum Reach – Non-Extending Dipper, kg (lbs): 1347 (2970)
Bucket Breakout – General Purpose, kN (lbf): 41.6 (9361)
Bucket Capacity – Standard General Purpose, m³ (yd³): 0.77 (1)
Bucket Tearout – Non-Extending Dipper, kN (lbf): 48.2 (10844)
Fuel Tank, ltr (gallons (US)): 128.7 (34)
Hydraulic Tank, ltr (gallons (US)): 45 (11.9)
Lift To Full Height – General Purpose Bucket, kg (lbs): 2919 (6435)
Pump: Gear Type Pump
Pump Flow, lt/min (gallons (US) / min): 106 (28)
Rear Axle, ltr (gallons (US)): 18 (4.75)
Stick tearout, kN (lbf): 31.1 (6992)
Bucket Pin Height – General Purpose, mm (ft/in): 3480 (11 ft 5 in)
Bucket Rotation – Position 1, Degrees: 190
Digging Depth – General Purpose, mm (inches): 70 (2.8)
Dump Height – General Purpose, mm (ft/in): 2740 (9 ft )
Dump Reach – General Purpose, mm (inches): 702 (27.7)
Ground Clearance, mm (inches): 293 (12)
Height over ext Stick, mm (ft/in): 3390 (11 ft 1 in)
Height over std Stick, mm (ft/in): 3390 (11 ft 1 in)
Max length with std. Stick, mm (ft/in): 7240 (23 ft 9 in)
Maximum Width, mm (ft/in): 2200 (7 ft 3 in)
Wheelbase – 4WD, mm (ft/in): 2190 (7 ft 2 in)
Width – General Purpose Bucket, mm (ft/in): 2184 (7 ft 2 in)
Width over tires, mm (ft/in): 2200 (7 ft 3 in)
Displacement, ltr (Inches³): 4.5 (276)
Engine Manufacturer : John Deere
Engine Model: PowerTech EWL 4045HL050
Engine Output – Net, kW (hp): 75 (100)
Rated Speed, rpm: 1600
Service Brake Actuation: Hydraulic w/Power Assist
Service Brake Type: Wet Multi Disc
Transmission Type: Powershift
Operating Weight, kg (lbs): 6822 (15039)
Weight – 4WD, GP, std Stick, kg (lbs): 6822 (15039)
