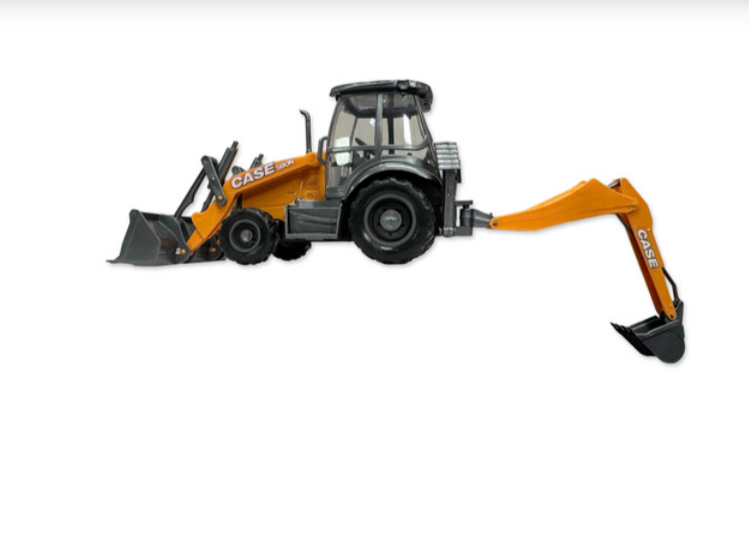

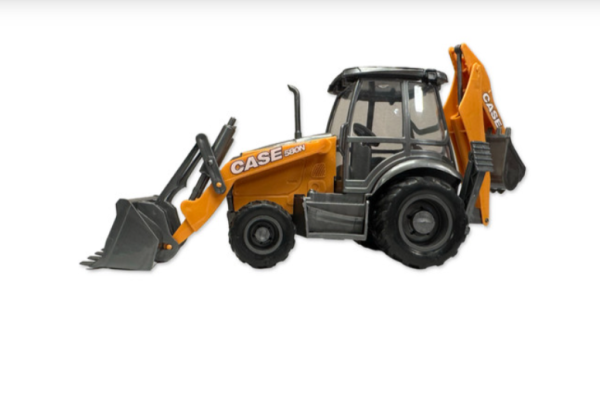

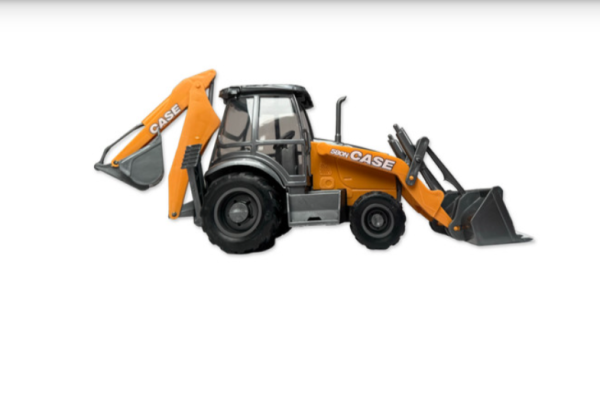

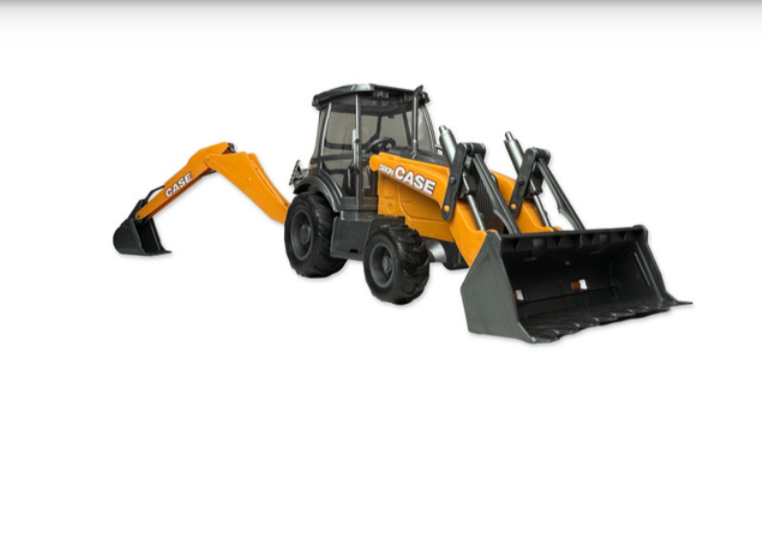

CASE 580N Backhoe Loader

Description

The Case 580N Backhoe Loader is a high-performance, Tier 4 Interim-compliant machine designed for modern construction, excavation, and agricultural operations. Featuring the Case F5C 3.4L turbocharged diesel engine, advanced hydraulics, and a reliable power shuttle transmission, the 580N delivers exceptional digging depth, lifting power, and fuel efficiency.

Known for its ergonomic controls, enhanced visibility, and operator comfort, the 580N remains a staple in jobsite productivity and uptime.
Hydraulic System:
Maximum Flow: 31.7 gal/min (120 L/min)

Relief Valve Pressure: 3,625 psi (25 MPa)

Hydraulic Functions: Loader, backhoe, and auxiliary attachments

Performance Metrics:
Loader Bucket Capacity: 1.25 cubic yards

Loader Lift Capacity: 6,865 lbs (3,113 kg)

Backhoe Max Digging Depth: 14 ft 3 in (4.35 m)

Backhoe Bucket Digging Force: 11,517 lbs (5,223 kg)

Dimensions & Weight:
Operating Weight: ~17,000 lbs (7,711 kg)

Transport Height (to top of ROPS): Approx. 9.0 ft

Overall Length (Transport): ~23.5 ft
